ReLU layer

The ReLU (Rectified Linear Unit) layer defines continuous hidden units with values in $[0, \infty)$. The potential function is:

\[U(x) = \left(\frac{|\gamma|}{2} x - \theta\right) x \quad \text{for } x \geq 0\]

with $U(x) = \infty$ for $x < 0$, enforcing non-negativity. This is equivalent to a truncated Gaussian distribution. Conditioned on the input $I$ from the other layer, the unit follows a rectified Gaussian with location $(\theta + I) / |\gamma|$ and scale $1 / |\gamma|$.

In this example we visualize the distribution of ReLU units for different values of $\theta$ and $\gamma$.

import RestrictedBoltzmannMachines as RBMs
using CairoMakie, Statistics

Initialize a ReLU layer with different parameter combinations.

θs = [0; 10]
γs = [5; 10]
layer = RBMs.ReLU(; θ = [θ for θ in θs, γ in γs], γ = [γ for θ in θs, γ in γs])

Sample from the layer (with zero input from the other layer).

data = RBMs.sample_from_inputs(layer, zeros(size(layer)..., 10^6))

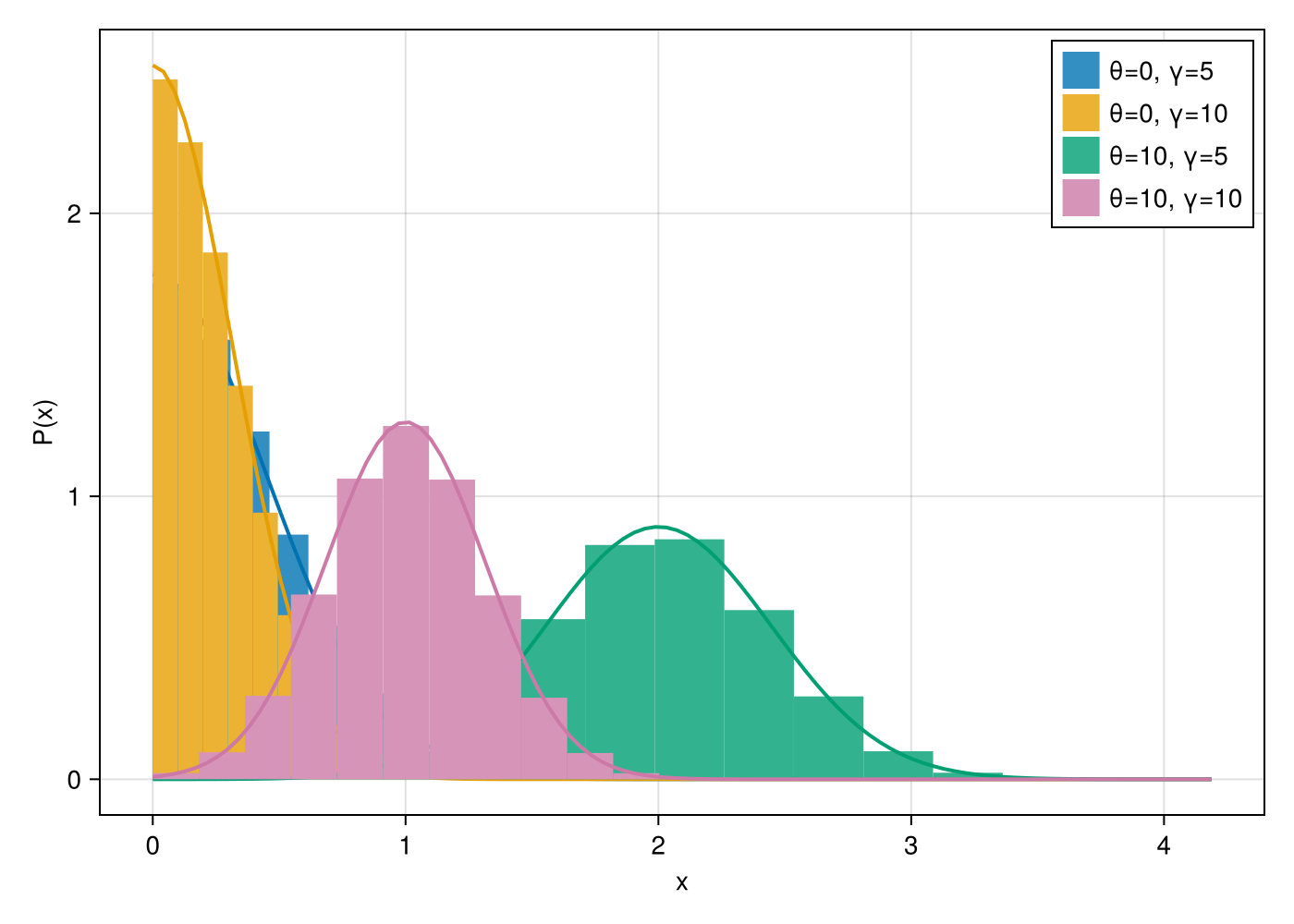

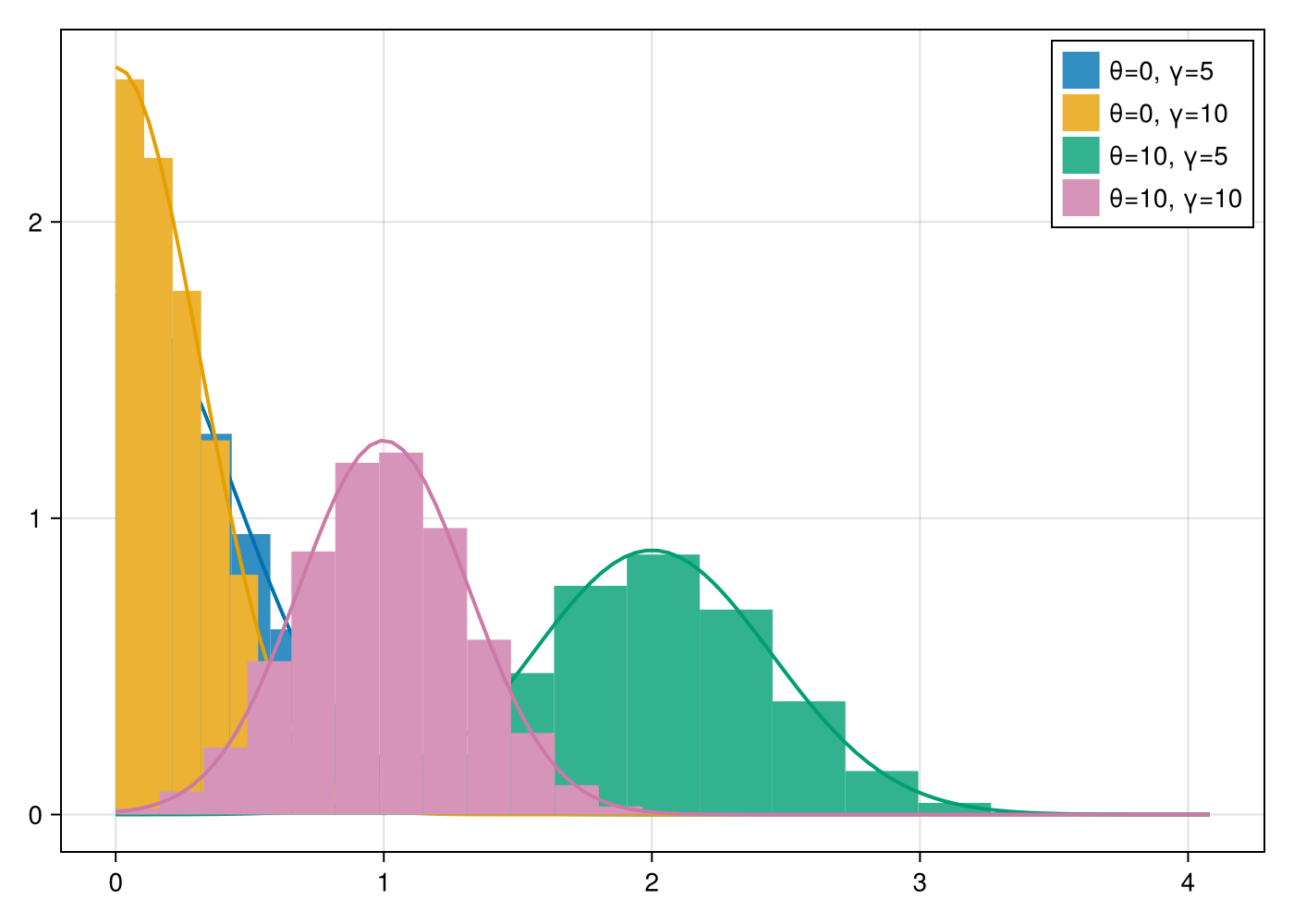

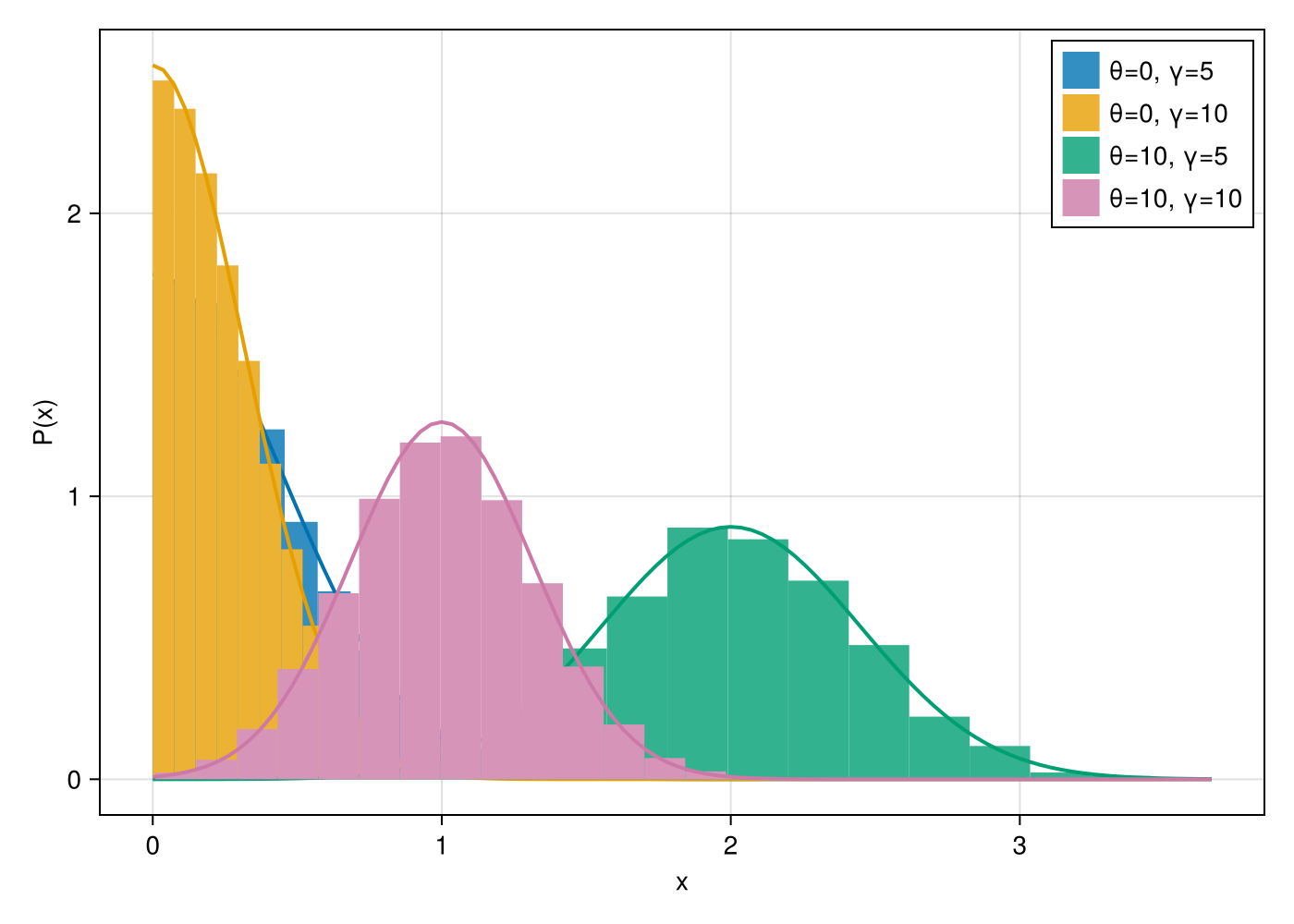

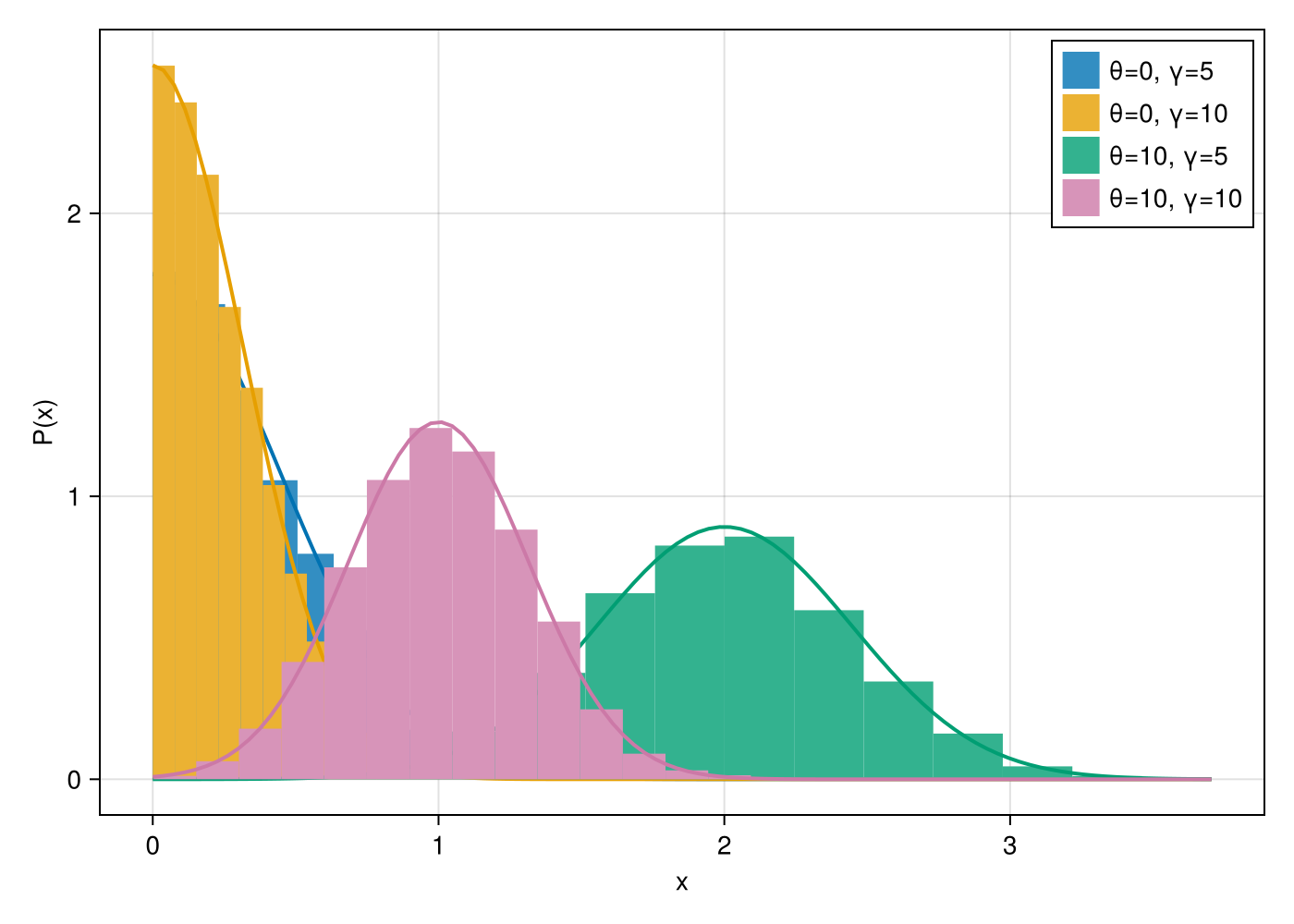

Plot the empirical histogram alongside the analytical PDF. Note the characteristic spike at $x = 0$ from the rectification, and the Gaussian-like tail for positive values.

fig = Figure(resolution=(700,500))
ax = Axis(fig[1,1], xlabel="x", ylabel="P(x)")
xs = repeat(reshape(range(minimum(data), maximum(data), 100), 1, 1, 100), size(layer)...)
ps = exp.(-RBMs.cgfs(layer) .- RBMs.energies(layer, xs))
for (iθ, θ) in enumerate(θs), (iγ, γ) in enumerate(γs)
    hist!(ax, data[iθ, iγ, :], normalization=:pdf, label="θ=$θ, γ=$γ")
    lines!(xs[iθ, iγ, :], ps[iθ, iγ, :], linewidth=2)
end
axislegend(ax)
fig
